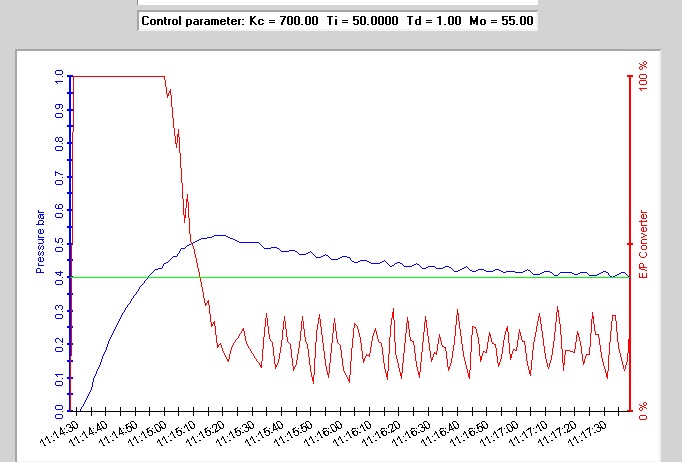

Realization of PID algorithmDuring the practice period of time I did a lot of activites in Pressure Control panel. I have done all of activities via personal computer. While doing these activities I used some process control algorithms like open loop control algorithm, on-off control algorithm, P, PI, PD and PID control algorithms. For instance, there parameters of PID algorithms and diagram of the output result.


Automatization of air compressor
The goal of automating air compressor is holding the output pressure of air compressor in the range of 2 and 3 bar. Air compressor must switch on or off when the output pressure more than 3 bar and less than 2 bars. Holding the output pressure of air compressor gives me less tumult and it helps to decrease the amount of electrical energy.
The scheme of controlling the output pressure of air compressor from 2 to 3 bar:
2 1 4
Specification Table:
No
| Name
| Model
| Parameters
|
| Air Compressor
| Compressor. Power plus. Silent operation. Model: POW547 Serial number: 2003-2717-001412
| 230V, 50Hz Max. pressure: 7.0bar/100Psi
|
| PLC
| Овен Плк 150
|
|
| Gauge
| Gauge. Fimet
| 0 – 10 bar
|
| Tee
| -
| -
|
| Transducer
| Датчик давлен ия SITRANS P200
| Input:0 – 4 bar, Output: 0 – 10 V
|
III. Conclusion
I got skills on engineering data and the guidelines and regulations towards technology in the practice period. With the development of documents showed a level of theoretical knowledge. Technical safety instructions have studied for an engineer. I have achieved its goals and decided to pursue the above objectives. Consolidate and extend the knowledge gained in the study of technical disciplines.
.
IV. Reference
1.https://www.labvolt.com/.../86006_f0.pdf
2.http://www.ngpedia.ru/id426799p1.html
3.http://fas.su/page-542
4.http://www.findpatent.ru/patent/205/2057361.html
